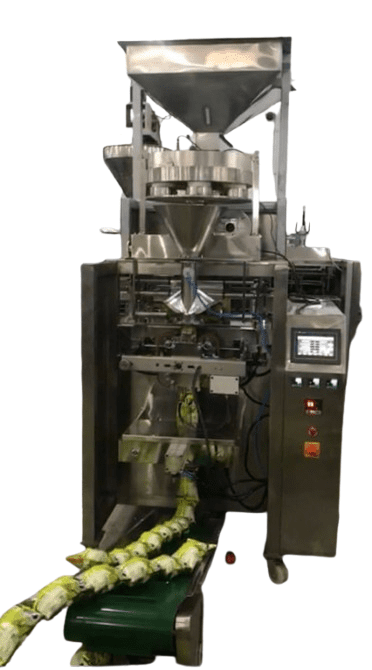

Collar Type Fully Pneumatic Cup Filler
Automatic Collar Type Form Fill & Seal Machine with Cup Filler for Grains & Free Flow Powder items Like Rawa, Broken Wheat, Detergent, Tea, Coffee, Namkeen, Fryms, Peanut, Puffs, Soya Chunk, Pesticides Etc. in Volumetric Cup Filler
Technical Specifications
| Packing Range : | 1.(20gm to100gm) 2.(100gm to 500gm) 3.(500gm to 1000gm) |
| Filling System : | Volumetric Cup Filler |
| Type of Sealing : | Center Seal |
| Packing Material : | Powder, Grains, Etc |
| Film Size : | 200mm-420mm width x 100mm-550mm length |
| Film Roll Size : | OD 250 to 400mm max. ID film reel pipe 75mm |
| Film Roll Type : | Laminated Film |
| Speed : | 40 to 60 bag/min (Varies with the nature of product & Filling range) |
| Power : | 3 KW 230V / AC / Single Phase/ 50hz |
| Optional : | Batch Coding Device, Batch Cutting Device Gas Flushing |
| Wooden Case : | 1700mm x 1000mm x 1100mm (H x W x L)) |
| Machine Size : | 1050mm x 990mm 2100(L x W x H) |
| Machine Weight : | 750kg. (Approx) |
