| Machine Type |

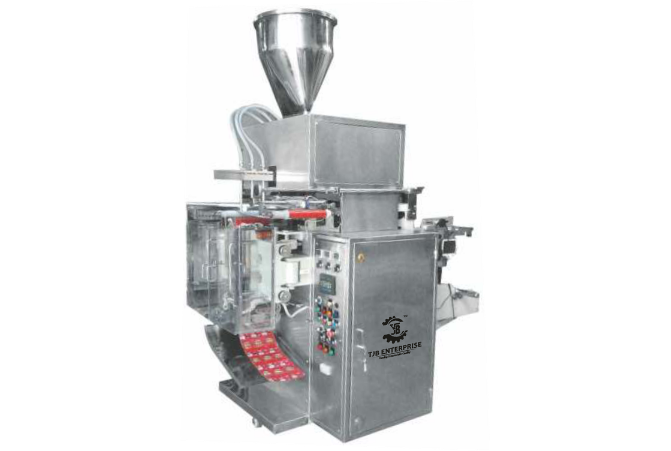

Automatic Multi-Track Form Fill & Seal Machine |
| Filling System |
Piston Filler, Cup Filler |
| Packing Range |
2 ml to 50 ml (2 gm to 50 gm) |
| Sealing Type |
Four Side Seal |
| Packing Material |
Laminated Film |
| Film Size |
400 mm – 900 mm width × 50 mm – 150 mm length |
| Film Roll Size |
OD 250 – 400 mm max; ID film reel pipe 75 mm min |
| Film Roll Type |
Laminated Film |
| Speed |
50 – 100 stocks per minute (varies with product & filling range) |
| Power Supply |
4 kW, 440V AC, Three Phase |
| Machine Dimensions |
2200 × 1700 × 2300 mm |
| Product Contact Parts |
SS 304 |
| Machine Weight |
Approx. 1500 kg |
| Optional Features |
Batch Coding Device, Batch Cutting Device, Auto Lubrication, GMP Model, Gas Flushing, Unit Level Sensor |
